2-SEAL™ Thermal Wing Nut Anchor

2-SEAL™ Thermal Wing Nut Anchor

H&B

$1.00
(No reviews yet) Write a Review
SKU:
2SEALWINGTH
[SM][BOOLEAN] Cavity Insulation:
Yes
[SM][BOOLEAN] Seals Air Barrier:
Yes
[SM][BOOLEAN] Seals Insulation:
Yes
[SM][PICKLIST] Vertical Adjustability:
1 1/4"|2 1/4"
[ASSET][SUBMITTAL] Submittal 1:
https://media.h-b.com/SUBMITTAL-2-SEAL-THERMAL-WING-NUT.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 1:
https://media.h-b.com/Polymer+Coating+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 2:
https://media.h-b.com/Bright+Basic+Wire+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 3:
https://media.h-b.com/Hot-Dip+Galvanized+Coating+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 4:
https://media.h-b.com/Stainless+Steel+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 5:
https://media.h-b.com/Thermal+UL-94+Coating+SDS.pdf
[ASSET][CAD] CAD (2D):
https://media.h-b.com/CAD+2-SEAL+Thermal+Wing+Nut.zip
[PICKLIST] Finishes/Materials:
Type 304 - Stainless Steel
SKU Number:
2SEALWINGTH
[SM][PICKLIST] Backup Type:
Metal Stud
[SM][BOOLEAN] Decreases Thermal Transfer:
Yes
[SM][BOOLEAN] Includes Integrated Fastener:
Yes
[SM][BOOLEAN] Secures Insulation:
Yes
[ACCESSORIES][Seismic Region] Seismic Option:

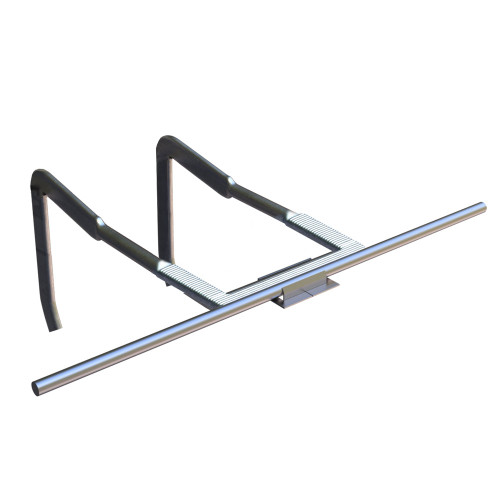

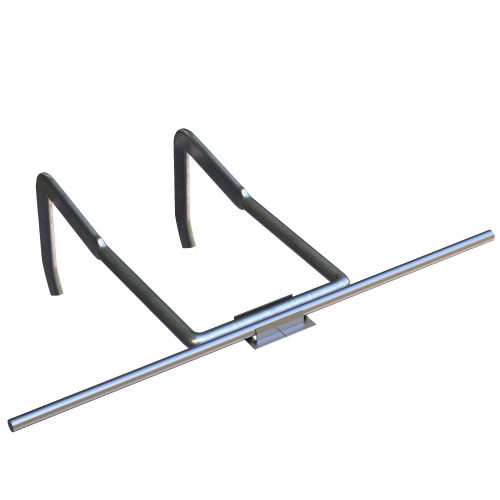

2XHOOK|CONTWIRE|SEISMICLIP&2X-SH|CONTWIRE&2X-C|CONTWIRE
[REQUIRED][ACCESSORIES] Required Accessories Standard:
2XHOOK
[ACCESSORIES][High Wind Region|Wide Cavity] Required Accessories High Strength:
2XHOOK-ML
[ACCESSORIES][High Wind Region|Wide Cavity&Seismic Region] Required Accessories High Strength Seismic:
2XHOOK-ML-C|CONTWIRE
[PICKLIST] Sizes:
5/8"|1"|1 1/2"|2"|2 1/2"|3"|3 1/2"|4"|4 1/2"|5"|5 1/2"|6"|6 1/2"
[SELLS_WITH][ACCESSORIES] Sells With:
2XHOOK-ML-C|2XHOOK-ML|2X-C|2X-SH|2XHOOK
[SM][PICKLIST] Minimum Air Space Requirement:
1"
[PDF][PART-1] Material Conformance - Text:

Barrel (Stainless Steel): ASTM A580/A580M - AISI Type 304
Screw (Carbon Steel): ASTM A510 (Carbon Steel)  ASTM C954 (1000-hour polymer coating)

[PDF][PART-2] Material Conformance - Text:

0px;">Wire (Carbon Steel): Prefabricated from cold-drawn steel wire conforming to ASTM A1064/A1064M
Tensile Strength - 80,000 p.s.i. | Yield Point - 70,000 p.s.i. minimum
Zinc Coating: Hot-Dip Galvanized after
[PDF][PART-3] Material Conformance - Text:
fabrication: ASTM A153/A153M-B (1.5 oz/ft2)

Wire (Stainless Steel): ASTM A580/A580M - AISI Type 304 (Type 316 available special order)

[PDF][PART-1] Submittal Notes:
  • Install with a standard  5/16” hex socket.
  • H&B recommends Stainless Steel Wire Ties for maximum protection against corrosion.
  • Some configurations are non-stock, contact your local sale
[PDF][PART-2] Submittal Notes:
s manager for price, availability and lead times.
  • H&B RECOMMENDS 16” X 16” SPACING
    • [PDF][PART-1] Submittal Short Description:

    An innovative single screw veneer tie for metal stud construction.

    Features:

    • A dual-diameter barrel with factory-installed EPDM washers to seal both the face of the ins
    [PDF][PART-2] Submittal Short Description:
    ulation and the air/vapor barrier (an extra large washer helps secure insulation to backup).
  • Projecting Thermal Wings are steel reinforced and coated with highly flame resistant plastic to create a thermal break, decreasing
    • [PDF][PART-3] Submittal Short Description:
    thermal transfer through rigid insulation.
  • The Wings accept a standard or seismic 2X-HOOK, spin to easily orient pintles/hooks to masonry joints, and provide up to 1/2” of adjustability to account for variations in wall thickness.
    • <
    [PDF][PART-4] Submittal Short Description:
    p>Thermal 2-Seal™ Wing Nut Anchor: US Pat. No.  7,415,803; US Pat. No. 8,910,445
    2X-HOOK: U.S. Pat. No. 8,613,175

    [NO_PDF][SM][PICKLIST] Seismic Region:
    Yes|No
    [NO_PDF][SM][PICKLIST] High Wind Region:
    Yes|No
    [NO_PDF][SM][PICKLIST] Wide Cavity Condition:
    Yes|No
    [PDF] Assembly Image 2:
    https://media.h-b.com/2-seal-thermal-wingnut-zoom-assembly.jpg
    [ASSET][SUBMITTAL] Submittal 2:
    https://media.h-b.com/Metal+Stud+Selection+Chart+-+2-SEAL+Thermal+Wing+Nut.pdf
    [ASSET][LEED] LEED:
    https://media.h-b.com/LEED+2-SEAL+Thermal+Wing+Nut.pdf
    Adding to cart… The item has been added

    The Thermal 2-Seal™ Wing Nut Anchor is an innovative single screw veneer tie for metal stud construction, it features a dual-diameter barrel with factory-installed EPDM washers to seal both the face of the insulation and the air/vapor barrier, and unique Thermal Wings that are designed to decrease thermal transfer through rigid insulation.

    • The projecting Thermal Wings:
      • Are made from steel encapsulated in plastic to create a thermal break, the plastic is highly flame resistant
      • Accept a 2X-HOOK™ or Seismic 2X-HOOK™ and spin to easily orient pintles/hooks parallel to masonry joints
      • Up to 1/2” of inward adjustability to account for variations in wall thickness
    • H&B's Stainless Steel barrels have one-third the thermal conductivity of carbon steel barrels and one-seventh the thermal conductivity of the zinc barrels of our competitors products (refer to chart below)
    Metal TypeThermal Conductivity
    (W/cm K)
    Stainless Steel (Type 304)0.15
    AISI-SAE 1020 (Plain Carbon Steel)0.52
    Zinc (Commercial)1.1

    References:

    • ASM Metals Reference Book, Second Edition, American Society for Metals, Metals Park, OH, 1983.
    • Lynch, C. T., CRC Practical Handbook of Materials Science, CRC Press, Boca Raton, FL, 1989.
    • Shackelford, J. F., and Alexander, W., CRC Materials Science and Engineering Handbook, CRC Press, Boca Raton, FL, 1991



    • Made with a 5/16” hex head, install with a standard hex socket
    • Adaptable for seismic zones with the simple addition of 9 gauge or 3/16" continuous wire and a 2X-HOOK™ Seismic Pintle (SH)

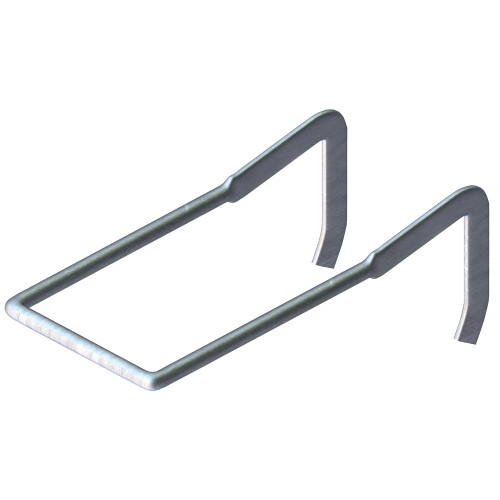

    The compressed leg 2X-HOOK™ has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

    • NOTE: 2X-HOOK™ CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
    • The embedded portion of the 2X-Hook is 3/16”DIA round wire, satisfying the code requirement that the mortar bed thickness (typically 3/8”) must be twice the diameter of the wire.
    • 2X-Hook: U.S. Pat. No. 8,613,175 Test results available upon request.

    AVAILABLE FINISHES:

    • Type 304 Stainless Steel Barrel with Polymer Coated Screw

    DIMENSIONS:

    • Available in 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", 5", 5-1/2", 6", and 6-1/2" sizes (Equal to thickness of wallboard and/or insulation)


    NOTES:

    !
