2X-SH Compressed Leg SEISMIC HOOK

2X-SH Compressed Leg SEISMIC HOOK

H&B

$1.00
(No reviews yet) Write a Review
SKU:
2X-SH
[ASSET][SUBMITTAL] Submittal 1:
https://s3-us-west-2.amazonaws.com/catsy.807/SUBMITTAL-2X-HOOK.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 1:
https://s3-us-west-2.amazonaws.com/catsy.807/Bright+Basic+Wire+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 2:
https://s3-us-west-2.amazonaws.com/catsy.807/Hot-Dip+Galvanized+Coating+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 3:
https://s3-us-west-2.amazonaws.com/catsy.807/Stainless+Steel+SDS.pdf
[PICKLIST] Finishes/Materials:
Hot-Dip Galvanized|Type 304 - Stainless Steel|Type 316 - Stainless Steel (Special Order)
[PICKLIST] Lengths:
3"|4"|5"|6"|7"|CUSTOM
SKU Number:
2X-SH
[PICKLIST] Wire Size:
3/16" Ø
[SM][BOOLEAN] Secures Insulation:
Yes
[SELLS_WITH][ACCESSORIES] Sells With:
170|270|2SEALWINGTH-CSA|ADJUSTO-TIE|CONTWIRE|2SEALWINGTH
[PDF][PART-1] Material Conformance - Text:

Wire (Carbon Steel): Prefabricated from cold-drawn steel wire conforming to ASTM A1064/A1064M
Tensile Strength - 80,000 p.s.i. | Yield Point - 70,000 p.s.i. minimum
Zinc Coating: Ho

[PDF][PART-2] Material Conformance - Text:
t-Dip Galvanized after fabrication: ASTM A153/A153M-B (1.5 oz/ft2)

Wire (Stainless Steel): ASTM A580/A580M - AISI Type 304 (Type 316 available special

[PDF][PART-3] Material Conformance - Text:
order)

[PDF][PART-1] Submittal Notes:

NOTE:

  • 1 ¼” of effective adjustability
  • The SH-SEISMIC 2X-HOOK can be installed with legs pointing up or down.
  • H&B recommends Stainless Steel for maximum protecti
[PDF][PART-2] Submittal Notes:
on against corrosion.
[PDF][PART-1] Submittal Short Description:

H&B's SH-SEISMIC HOOK has all the features of the 3/16”Ø Compressed Leg 2X-HOOK™ with the additional feature of being "swaged" (indented) in two places to accommodate either a 9 gauge or 3/16" continuous wire and is suitable

[PDF][PART-2] Submittal Short Description:
for standard 3/8" mortar joints

U.S. Patents 6,789,365, 7,325,366 & 8,096,090


[NO_PDF][SM][PICKLIST] Seismic Region:
Yes
[NO_PDF][SM][PICKLIST] High Wind Region:
No
[NO_PDF][SM][PICKLIST] Wide Cavity Condition:
No
[PDF][PART-4] Material Conformance - Text:

Wire (Stainless Steel): ASTM A580/A580M - AISI Type 304 (Type 316 available special order)

Adding to cart… The item has been added

Hohmann & Barnard's SH-Seismic Hook:

  • This hook is "swaged" (indented) in two places to accommodate either a 9 gauge or 3/16" continuous wire
  • A channel is formed that braces the continuous wire and holds it in place
  • Suitable for standard 3/8" joints
  • Rectangular hook/pintle acts as a vertically adjustable anchor to bond exterior masonry, while restraining in and out movement.
  • Design of hook/pintle serves to mechanically secure insulation to masonry backup.
  • Features the same compressed leg design as the 2X-HOOK™ and has been tested and designed to withstand over 200-lbf, in tension or compression, at maximum allowed offset (ACI 530 6.2.2.5.5.4) of 1-1/4” (disengagement of the pintle from the veneer anchor). These results exceed BIA recommendations and the capabilities of standard “round wire” hooks or pintles by over 100%!

AVAILABLE FINISHES:

  • Hot Dip Galvanized
  • Stainless Steel
  • NOTE: H&B Recommends Stainless Steel for maximum protection against corrosion

NOTE:

  • U.S. Pat. No. 6,789,365, 7,325,366 & 8,096,090

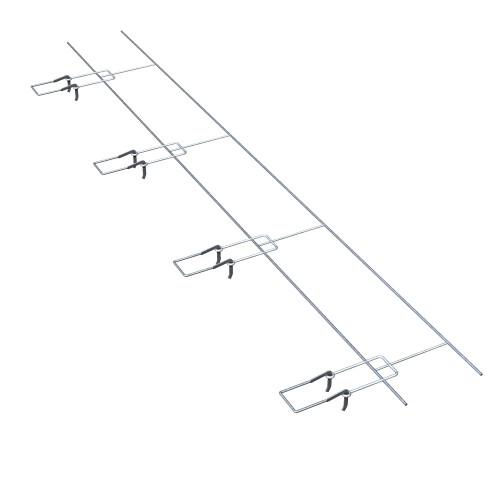

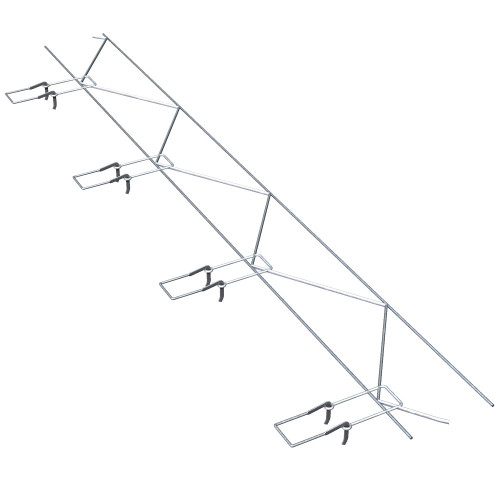

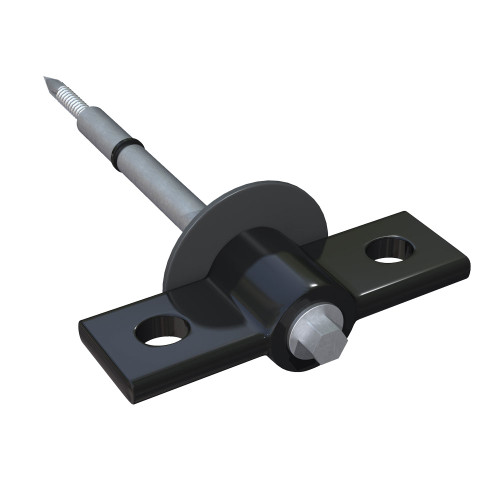

  • Specify "SH" Seismic Hook with: 170 Eye-Wire, 270 Eye-Wire, HB-213, and 2-SEAL Thermal Wing Nuts
!
