355 - Column Anchor

H&B

(No reviews yet) Write a Review

Write a Review

Close ×

H&B

355 - Column Anchor

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

355

UPC:

[PICKLIST] Lengths:

CUSTOM

SKU Number:

355

[PICKLIST] Thickness/Gauge:

12 gauge

[PICKLIST] Widths:

1 1/4"

[SM][PICKLIST] Backup Type:

Structural Steel (Column & Beam)

[ASSET][SUBMITTAL] Submittal 1:

https://media.h-b.com/SUBMITTAL-355-COLUMN-ANCHOR.pdf

[ASSET][SDS] Safety Data Sheet (SDS) 1:

https://media.h-b.com/Hot+Rolled+Carbon+Steel+SDS.pdf

[ASSET][SDS] Safety Data Sheet (SDS) 2:

https://media.h-b.com/Galvanized+Steel+Sheet+SDS.pdf

[ASSET][SDS] Safety Data Sheet (SDS) 3:

https://media.h-b.com/Hot-Dip+Galvanized+Coating+SDS.pdf

[ASSET][SDS] Safety Data Sheet (SDS) 4:

https://media.h-b.com/Stainless+Steel+SDS.pdf

[ASSET][CAD] CAD (2D):

https://media.h-b.com/CAD+355+-+Column+Anchor.zip

[PICKLIST] Finishes/Materials:

Hot-Dip Galvanized|Type 304 - Stainless Steel|Type 316 - Stainless Steel (Special Order)

[SM][BOOLEAN] Anchor for Intersecting Walls:

No

[SM][BOOLEAN] Can be Mechanically Fastened:

No

[SM][BOOLEAN] Can be Welded-On:

No

[SM][PICKLIST] Concrete Column:

No

[SM][PICKLIST] Masonry is parallel to column flange:

Yes

[SM][PICKLIST] Masonry is perpendicular to column flange:

No

[SM][PICKLIST] Masonry to beam:

No

[SM][BOOLEAN] Restrain positive and negative wind loads:

No

[SM][PICKLIST] Offset for Spray-On Fireproofing:

No

[PICKLIST] Bend Length:

2" (Standard)

[PDF][PART-1] Material Conformance - Text:

Sheet Metal (Carbon Steel): ASTM A1008/A1008M or ASTM A36/A36M
Zinc Coating:
Hot-Dip Galvanized: ASTM A123/A123M or ASTM A153/A153M-B2 Class B (1.5 oz/ft2)

[PDF][PART-2] Material Conformance - Text:

(steel plates and bars hot-dip galvanized after fabrication, as applicable to size and form indicated)

Sheet Metal (Stainless Steel): ASTM A666, ASTM A480/480M, and ASTM A240/A240M

[PDF][PART-3] Material Conformance - Text:

trong> - AISI Type 304 (Type 316 available special order)

[PDF][PART-1] Submittal Short Description:

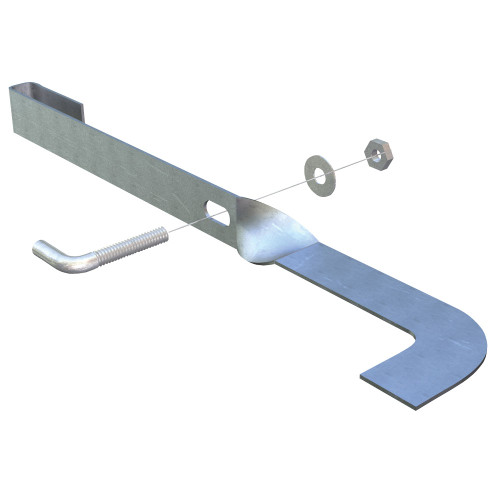

355 Column Anchor is for anchoring masonry to structural column when masonry is parallel to column flange.

Standard Dimensions:

• 1 1/4” wide x 12 gauge or 1/4” thic

[PDF][PART-2] Submittal Short Description:

k x length to suit.

Made to order based on the dimensions to the right.

See 353L for heavy-duty and custom thicknesses.

U.S. Patent No. 9,534,376
Canadian Patent No. 2,844,459

[PDF] Assembly Image 2:

https://media.h-b.com/355-zoom-assembly.jpg

[PDF] Submittal Notes:

• H&B recommends Stainless Steel for maximum protection against corrosion
• Some configurations are non-stock, contact your local sales manager for price, availability and lead times.
