Mighty-Lok® 2X-HOOK™

Mighty-Lok® 2X-HOOK™

H&B

$1.00
(No reviews yet) Write a Review
SKU:
2XHOOK-ML
[ASSET][SUBMITTAL] Submittal 1:
https://s3-us-west-2.amazonaws.com/catsy.807/SUBMITTAL-MIGHTY-LOK.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 1:
https://s3-us-west-2.amazonaws.com/catsy.807/Bright+Basic+Wire+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 2:
https://s3-us-west-2.amazonaws.com/catsy.807/Hot-Dip+Galvanized+Coating+SDS.pdf
[ASSET][SDS] Safety Data Sheet (SDS) 3:
https://s3-us-west-2.amazonaws.com/catsy.807/Stainless+Steel+SDS.pdf
[PICKLIST] Finishes/Materials:
Hot-Dip Galvanized|Type 304 - Stainless Steel|Type 316 - Stainless Steel (Special Order)
[PICKLIST] Lengths:
3"|4"|5"|CUSTOM
SKU Number:
2XHOOK-ML
[PICKLIST] Wire Diameter:
1/4" Ø
[SELLS_WITH][ACCESSORIES] Sells With:
2SEALWINGTH-CSA|2SEALWINGTH|ADJUSTO-TIE|170|270|HB5213|HB213
[PDF][PART-1] Material Conformance - Text:

Wire (Carbon Steel): Prefabricated from cold-drawn steel wire conforming to ASTM A1064/A1064M
Tensile Strength - 80,000 p.s.i. | Yield Point - 70,000 p.s.i. minimum
Zinc Coating:

[PDF][PART-2] Material Conformance - Text:
Hot-Dip Galvanized after fabrication: ASTM A153/A153M-B (1.5 oz/ft2)

Wire (Stainless Steel): ASTM A580/A580M - AISI Type 304 (Type 316 available spe

[PDF][PART-3] Material Conformance - Text:
cial order)

[PDF][PART-1] Submittal Short Description:

Heavy Duty 1/4”Ø Compressed Leg Mighty-Lok® Hook, flattened and serrated to fit a 3/8” mortar joint satisfying code requirements for mortar bed thickness. Available with a welded seismic clip for seismic conditions. For use with Adjustable Joint

[PDF][PART-2] Submittal Short Description:
Reinforcement (170/270), HB-213 Veneer Anchor, and 2-SEAL™ Thermal Wing Nut Anchors.

[PDF] Submittal Notes:
  • 2¼” of effective adjustability
  • The Mighty-Lok® 2X-HOOK can be installed with legs pointing up or down.
  • H&B recommends Stainless Steel for maximum protection against corrosion.
Adding to cart… The item has been added

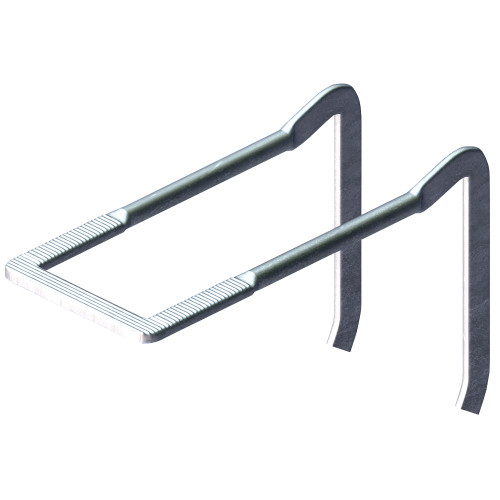

The new Mighty-Lok™ HOOK, is a Heavy Duty 1/4” diameter compressed leg pintle that is flattened and serrated to fit a 3/8” mortar joint satisfying code requirements for mortar bed thickness.1

  • The Mighty-Lok® Hook CAN BE INSTALLED WITH LEGS POINTING UP OR DOWN.
  • Works with H&B Eye wire products and is available truss style (170-ML) or ladder style (270-ML), features super-heavy-duty eyelets and pintles for superior strength and performance. This is especially beneficial for today's multi-wythe construction with extra-wide cavity walls or when mortar joints are not in close alignment.
  • Also works with HB-213 Veneer Anchors
  • Mighty-Lok™ HOOK is flattened and serrated for superior bonding with mortar.
  • Mighty-Lok™ HOOKs are designed to mechanically secure insulation to masonry backup.
  • For seismic applications a Welded Seismic Clip is available: Truss style (170-ML with Welded Seismic Clip) or Ladder style (270-ML with Welded Seismic Clip)

NOTE:

  • U.S. Patent No.
    6,279,283
    6,668,505
    Other Patents Pending.
!
